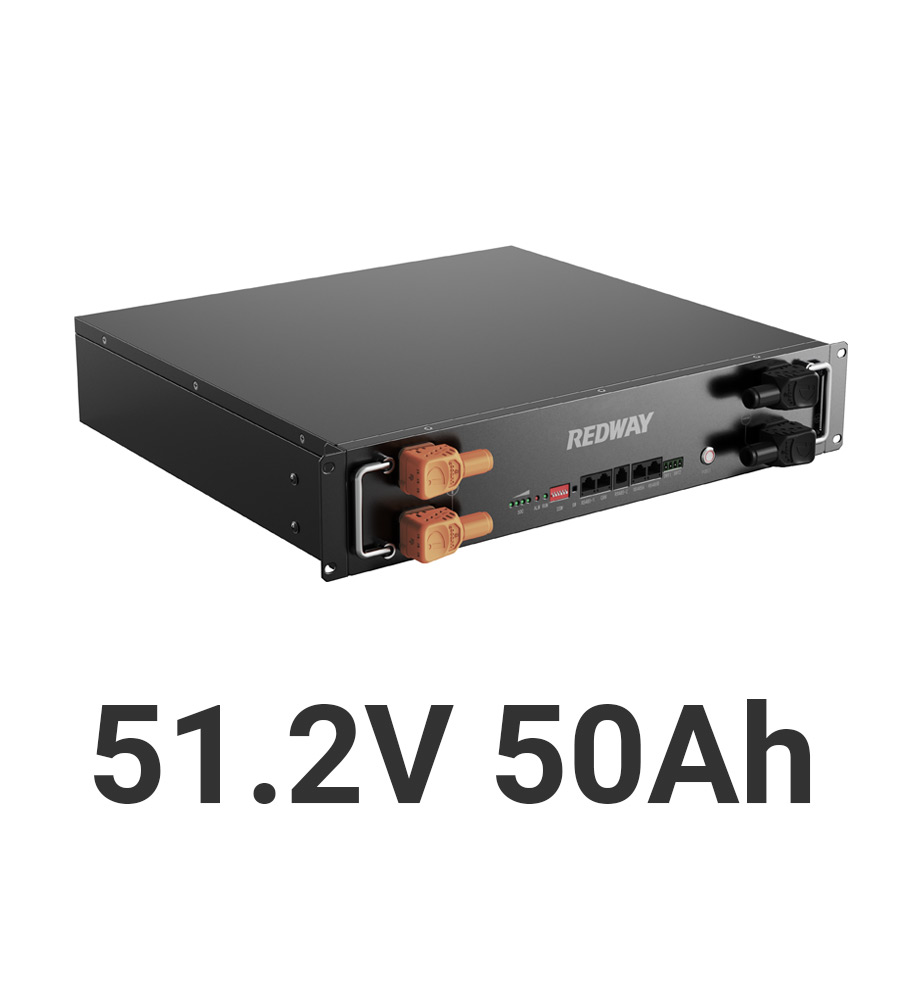

51.2V 50Ah 2.5kWh Rack Battery 2U

Specifications

PM-LV5150-2U-PRO
Lithium Cell Type	LiFePO4
Nominal Voltage	51.2V
Nominal Capacity	50Ah
Nominal Energy	2.56kWh
Working Voltage	Max Charge: 58.4V / Discharge Cut-off: 40V
Dimensions (L x W x H)	410 x 440 x 88 mm (2U) (16.1 x 17.3 x 3.5 inches inches)
Weight	~22kg (48.5 lbs)
Max Continuous Charge Current	50A
Max Continuous Discharge Current	50A
Charging Temperature	0~60°C
Discharging Temperature	-20~60°C
Max Parallel Connections	16~32
Communications	RS485, CAN-bus
Design Life	20 Years
Cycle Life (80%DOD 0.5C)	>8000 Cycles
Cycle Life (60%DOD 0.5C)	>9000 Cycles
IP Rating	IP21
Terminal	High current single core quick connector for ESS litium battery
Battery Shell	Metal (Black, Gray, White, Blue, etc.)
BMS	JBD BMS
Circuit Breaker	No
LCD Display	No
Optional Upgrades	Bluetooth, App, LCD Display, SNMP, PC Monitoring Software, WiFi, 4G, GPS, Circuit Breaker, RS232, Self-heating, TACP, Circuit Breaker, Power Switch, etc.
Compatible Inverters	Deye, Victron, GOODWE, Sol-Ark, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, SMA, FOX, etc.
Certifications	UL 1642, UL 1973, IEC 62619, IEC 62133, CE, RoHS, UN38.3, MSDS
