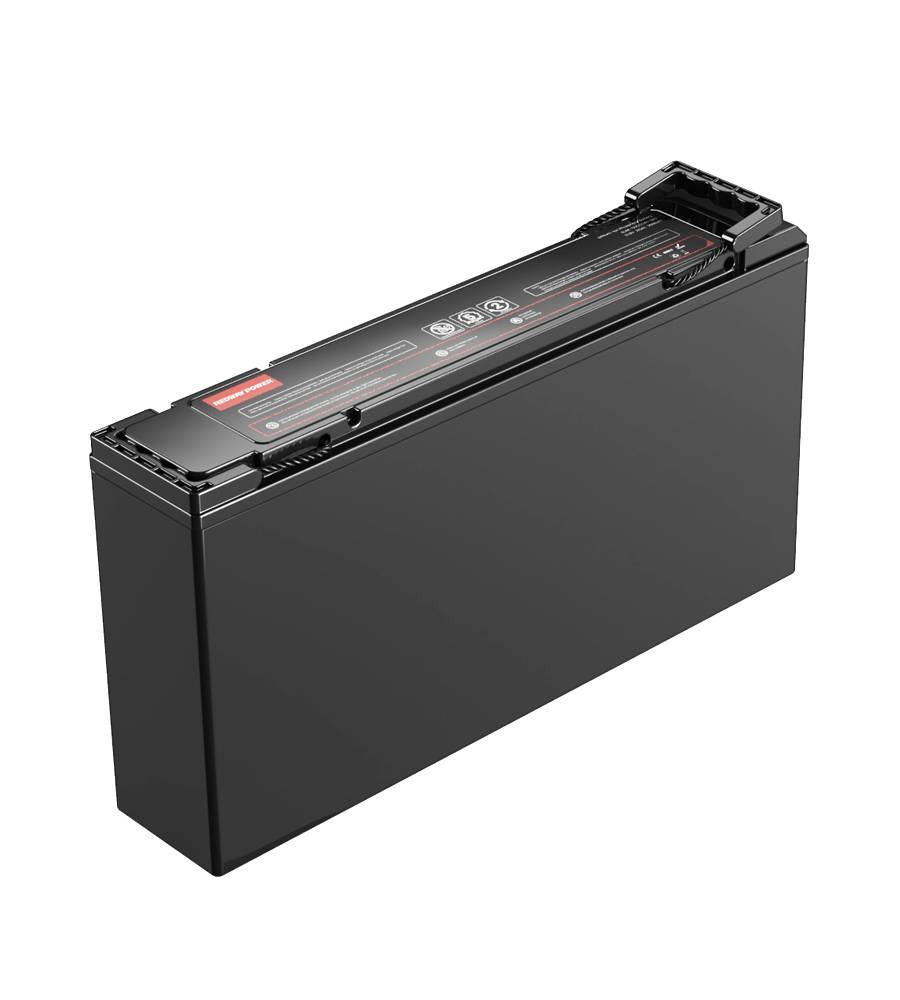

12V 150Ah LiFePO4 Battery (Cylindrical Cell)

• Cell: LiFePO4
• MOQ: 50
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes
• Factory: Redway, Dongguan, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Description

Introducing the 12V 150Ah LiFePO4 Battery (Cylindrical Cell) from HeatedBattery, a premium energy solution tailored for OEM, ODM, and wholesale buyers. This high-capacity battery utilizes advanced Lithium Iron Phosphate technology to deliver a powerful nominal energy output of 1920Wh, making it perfect for demanding applications such as RVs, marine systems, and solar energy storage.

Key Features

  • High Capacity: Provides a nominal voltage of 12.8V and a substantial capacity of 150Ah, ensuring reliable power for various demanding applications.
  • Exceptional Cycle Life: Designed for over 5000 cycles at 100% Depth of Discharge (DoD), significantly reducing total ownership costs and enhancing durability.
  • Compact & Lightweight Design: With dimensions of 483 x 170 x 240 mm (19.0 x 6.7 x 9.4 in) and a weight of approximately 18 kg (39.7 lbs), this battery is easy to install in tight spaces.
  • Robust Protection: Rated IP65, it offers excellent dust and water resistance, making it suitable for outdoor and marine environments.
  • Customizable Options: Available for OEM/ODM projects, including features like Bluetooth connectivity and tailored branding.

Product Description

The 12V 150Ah LiFePO4 Battery is engineered to meet the high energy demands of diverse applications, including RVs, boats, off-grid solar systems, and backup power solutions. With a maximum continuous charge and discharge current of up to 200A, this battery ensures efficient power management tailored to your specific needs.Constructed from durable ABS material, this battery withstands harsh conditions while maintaining optimal performance. It operates effectively within a charging temperature range of 0°C to 45°C and discharges efficiently between -20°C to 60°C.Equipped with an intelligent Battery Management System (BMS), this battery protects against overcharging, over-discharging, short circuits, and other potential hazards. The self-discharge rate is maintained at approximately 3% per month, allowing for extended storage without significant loss of capacity.With a warranty period of up to 5 years, the 12V 150Ah LiFePO4 Battery stands out as a premier choice for OEMs, wholesalers, and those seeking reliable energy solutions. Contact us today to explore customization options and bulk purchasing benefits!

Specifications

Specifications
Lithium Cell LiFePO4
Nominal Voltage 12.8V
Nominal Capacity 150Ah
Nominal Energy 1920Wh
Max Charge Voltage 14.6V
Discharge Cut-off Voltage 10V
Max Continues Charge Current 100A
Max Continues Discharge Current 100A
Dimensions [L x W x H] 552 x 110 x 288 mm / 21.7 x 4.3 x 11.4 inches
Weight 12.8 kg / 28 lbs
IP Rating IP65
Battery Internal Series & Parallel 4S10P
Max Parallel Connections 4P
Internal Resistance ≤20mΩ
Cycle Life >4000 cycles (DOD 80%)
Self-discharge 3% (Per month)
Charge Temperature 0°C ~ 60°C
Discharge Temperature  -20°C ~ 65°C
Optional Upgrades Bluetooth / Self-Heating / LCD / RS485 / RS232 / CAN / 4G, 5G / GPS / APP
Charger Optional
BMS Smart BMS Protection
Terminal M8
Battery Shell ABS
Warranty 3 Years
Silkscreen / Label / Laser Logo Yes
User Manual Yes
OEM / ODM Yes
Shipment Yes
Certifications UL 1642, IEC 62619, UN38.3, MSDS
